TKF
100043
Power cable < 1 kV, for moving application
Manufacturer part number: 100043
Serie: NL-Elektr.leid/INT-Stuurstr.
Type: RTPR
EAN-code: 8713182455576
SKU Omnical: 4157200
Stock: 0.
Estimated lead time: 25 days *
PreOrder
YVO
€
1.336,50
per 500 items
€
1.117,31
per 500 items
EUR | Excluding VAT
Quantity
x 500 items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

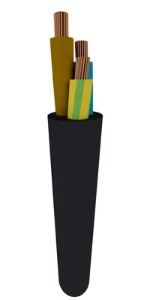

100043 TKF Power cable < 1 kV, for moving application
TKF Power cable < 1 kV, for moving application RTPR 3 G 0,75 mm² Zwart
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of cores
3
Nominal cross section conductor
(mm²)
0.75
Core identification
Colour
Colour outer sheath
Black
Conductor material
Copper
Conductor surface
Bare
Conductor category
Class 5 = flexible
Material core insulation
Rubber
Core identification according to HD 308 S2
Yes
Material outer sheath
Rubber
Halogen free according to EN 60754-1/2
Yes
Outer diameter approx.
(mm)
6.8
Min. permitted bending radius, stationary application/permanent installation
(mm)
35
Permitted cable outer temperature during assembling/handling
(°C)
-15 - 55
Permitted cable outer temperature after assembling without vibration
(°C)
-40 - 90
Nominal voltage U0
(V)
300
Nominal voltage U
(V)
500
Shape of conductor
Round
Weight
(kg/km)
52
Max. conductor temperature
(°C)
90
Yes
Halogen free according to IEC 60754-2
Yes
Stock and logistics
Height
400 mm
Width
340 mm
Depth
400 mm
Packaging
Reel
Weight
27 kg
HS code
85444995
