TKF
9980
Power cable < 1 kV, for moving application
Manufacturer part number: 9980
Serie: NL-Elektr.leid/INT-Stuurstr
Type: H05BQ-F
EAN-code: 8713182213084
SKU Omnical: 2719035
Stock: 0.
Estimated lead time: 5 days *
PreOrder
YVN
€
1.752,50
per 500 items
€
1.465,09
per 500 items
EUR | Excluding VAT
Quantity
x 500 items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
9980 TKF Power cable < 1 kV, for moving application

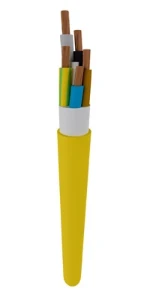

TKF Power cable < 1 kV, for moving application H05BQ-F 3 G 1 mm² Geel
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of cores
3
Nominal cross section conductor
(mm²)
1
Core identification
Colour
Colour outer sheath
Yellow
Conductor material
Copper
Conductor surface
Bare
Conductor category
Class 5 = flexible
Material core insulation
Rubber
Specification core insulation
Rubber - ethylene propylene rubber (EPR)
Core identification according to HD 308 S2
Yes
Material outer sheath
Polyurethane (PUR)
Specification material outer sheath
Other
Outer diameter approx.
(mm)
7.5
Min. permitted bending radius, moving application/free movement
(mm)
80
Min. permitted bending radius, stationary application/permanent installation
(mm)
40
Permitted cable outer temperature during assembling/handling
(°C)
-20 - 50
Permitted cable outer temperature after assembling without vibration
(°C)
-40 - 85
Nominal voltage U0
(V)
300
Nominal voltage U
(V)
500
Shape of conductor
Round
Weight
(kg/km)
78
Max. conductor temperature
(°C)
90
Yes
Stock and logistics
Height
400 mm
Width
440 mm
Depth
400 mm
Packaging
Reel
Weight
39.975 kg
HS code
85444995
