Trilux
6066140
Ceiling-/wall luminaire
Manufacturer part number: 6066140
Serie: Belviso
Type: LED
EAN-code: 4018242270361
SKU Omnical: 4072521
Stock: 0.
Estimated lead time: 23 days *
PreOrder
XVG
€
723,10
per item
€
516,29
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

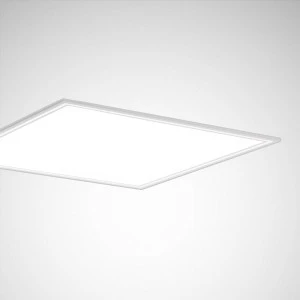

6066140 Trilux Ceiling-/wall luminaire
Trilux Ceiling-/wall luminaire Inbouwarmaturen Belviso C Prisms Wit ET 27W 4000lm Wide reduced glare
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for wall mounting
No
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Width
(mm)
597
Lamp type
LED exchangeable
With light source
Yes
Lamp holder
Other
Suitable for number of lamps
1
Type of control gear
Electronic transformer
With control gear
Yes
Suitable for emergency lighting
No
Nominal voltage
(V)
220 - 240
Colour temperature
(K)
4000 - 4000
Material housing
Steel
Colour housing
White
Suitable for light line configuration
No
Material cover
Other
Suitable for workplace according to EN 12464-1
Yes
Type of grid
None
Light sharing
Symmetric
Light outlet
Direct
Length
(mm)
597
Height/depth
(mm)
92
Built-in length
(mm)
580
Built-in width
(mm)
580
Built-in height/depth
(mm)
330
With movement sensor
No
With light sensor
No
Protection class
I
Degree of protection (IP)
IP20
Impact strength
IK06
Luminaire with limited surface temperature, sign "D“
No
Covering of the luminaire with thermally insulating material possible
Yes
Max. system power
(W)
27
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
4000
Colour of light
White
Colour rendering index CRI
80-89
Surface protection housing
Powder coating
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Dimming depending on control gear
No
Operation by Bluetooth
No
No dim function
Yes
Light distributor
Other
Colour consistency (McAdam ellipse)
SDCM3
Energy efficiency class of the built-in lamp
Other
Rated ambient temperature according to IEC62722-2-1
(°C)
-20 - 25
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Luminaire efficacy
(lm/W)
148
Power factor
0.95
Number of poles
3
Connection type
Push-in clamp
Total harmonic distortion
14
Photobiological safety according to EN 62471
RG1
Dimming DALI-2
No
Flickering value Pst LM
0.3
Stroboscope effect value SVM
0.3
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Exchangeable control gear
Yes
Max. number of luminaires per miniature circuit breaker B16
24
Max. number of luminaires per miniature circuit breaker C16
41
Constant light output (CLO)
No
Colour temperature adjustable
No
Luminous flux adjustable
No
Suitable for wall mounting
No
Stock and logistics
Height
0.112 m
Width
0.648 m
Depth
0.648 m
Packaging
box
Weight
8.4 kg
HS code
94051190
