Trilux
7010251

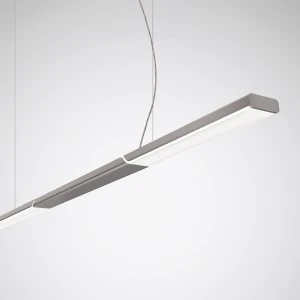

Pendant luminaire
Manufacturer part number: 7010251
Serie: Parelia
Type: LED
EAN-code: 4018242389018
SKU Omnical: 4078402
Stock: 0.
Estimated lead time: 23 days *
PreOrder
XVH
€
894,90
per item
€
868,95
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
7010251 Trilux Pendant luminaire
Trilux Pendant luminaire Pendelarmaturen Parelia Prisms Zilver ETDD 69W 12200lm Wide reduced gl
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED exchangeable
Lamp holder
Other
Suitable for number of lamps
1
Width
(mm)
102
Type of control gear
Electronic transformer
With control gear
Yes
Nominal voltage
(V)
220 - 240
Direct-/indirect proportion separately controllable
Yes
Material housing
Steel
Colour housing
Silver
Suitable for light line configuration
Yes
Material cover
Other
Suitable for workplace according to EN 12464-1
Yes
Type of grid
None
Reflector
None
Light sharing
Symmetric
Light outlet
Direct/indirect
Length
(mm)
1505
Pendant length
(mm)
1000 - 1000
Protection class
I
Degree of protection (IP)
IP20
Impact strength
IK02
Luminaire with limited surface temperature, sign "D“
No
With light source
Yes
Suitable for emergency lighting
No
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
12200
Colour of light
White
Colour temperature
(K)
4000 - 4000
Colour rendering index CRI
80-89
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming programmable
No
Dimming DSI
No
Dimming RF
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
Yes
Dimming Zigbee
No
Dimming with push-button
No
No dim function
No
Light distributor
Other
Colour consistency (McAdam ellipse)
SDCM3
Energy efficiency class of the built-in lamp
Other
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Max. system power
(W)
69
Luminaire efficacy
(lm/W)
177
Power factor
0.95
Height/depth
(mm)
37
Number of poles
5
Connection type
Push-in clamp
Dimming DALI-2
Yes
Flickering value Pst LM
0.3
Stroboscope effect value SVM
0.3
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Exchangeable control gear
Yes
Constant light output (CLO)
No
Colour temperature adjustable
No
Luminous flux adjustable
No
Max. number of luminaires per miniature circuit breaker B16
12
Max. number of luminaires per miniature circuit breaker C16
35
Operation by Bluetooth
No
Stock and logistics
Height
0.143 m
Width
0.147 m
Depth
1.035 m
Packaging
box
Weight
5.5 kg
HS code
94051190
