Wago
2006-1681/1000-449
Fuse terminal block
Manufacturer part number: 2006-1681/1000-449
Serie: Series 2006
Type: 2006-1681/1000-449
EAN-code: 4045454789824
SKU Omnical: 3009864
Stock: 0.
Estimated lead time: 9 days *
PreOrder
XOD
€
1.197,00
per 100 items
€
949,22
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

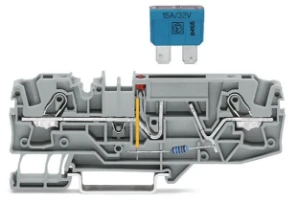

2006-1681/1000-449 Wago Fuse terminal block
Wago Fuse terminal block 2-draads zekeringsklem voor platte autozekeringen met testmogelijkheid
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of fuse insert
Blade fuse
Type of fuse holder
Pluggable
Type of indication element for defect indication
LED
Supply voltage for defect-indication
(V)
12 - 12
Voltage type for defect indication
AC
Width
(mm)
7.5
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 10
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
1.5 - 6
Connectable conductor cross section solid-core
(mm²)
1 - 10
Connectable conductor cross section multi-wired
(mm²)
0.5 - 6
Rated current In
(A)
25
Rated voltage
(V)
500
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Connection position
Above
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
105 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
7.5
Height at lowest possible mounting height
(mm)
32.9
Length
(mm)
96.3
Closing plate required
Yes
Colour
Grey
Height
(mm)
96.3
Depth
(mm)
32.9
Stock and logistics
Height
0.045 m
Width
0.105 m
Depth
0.227 m
Packaging
box
Weight
0.485 kg
HS code
85369095
Country of Origin
DE
