Wago
2007-1611
Fuse terminal block
Manufacturer part number: 2007-1611
Serie:
Type: 2007-1611
EAN-code: 4066966378627
SKU Omnical: 4273025
Stock: 0.
Estimated lead time: 9 days *
PreOrder
XOD
$
491.76
per 100 items
$
389.97
per 100 items
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

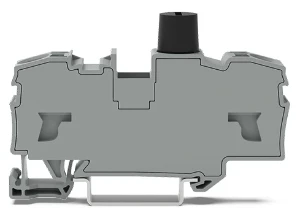

2007-1611 Wago Fuse terminal block
Wago Fuse terminal block 2-draads zekeringsklem voor G-smeltpatroon 5 x 20 mm zonder defectindi
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of fuse insert
G-fuse 5x20 mm
Type of fuse holder
Screwable
Type of indication element for defect indication
None
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 6
Connectable conductor cross section solid-core
(mm²)
0.5 - 10
Connectable conductor cross section multi-wired
(mm²)
0.5 - 10
Rated current In
(A)
10
Rated voltage
(V)
1000
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-60 - 105
Inflammability class of insulation material according to with UL94
V0
Closing plate required
No
Colour
Grey
Height
(mm)
73.8
Depth
(mm)
42.8
Stock and logistics
Height
0.06 m
Width
0.164 m
Depth
0.333 m
Packaging
box
Weight
1.301 kg
HS code
85369095
