Wago
2020-5372
Sensor/actuator terminal block
Manufacturer part number: 2020-5372
Serie: Series 2020
Type: 2020-5372
EAN-code: 4055143523820
SKU Omnical: 3010306
Stock: 0.
Estimated lead time: 9 days *
PreOrder
XOA
€
628,00
per 100 items
€
511,19
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

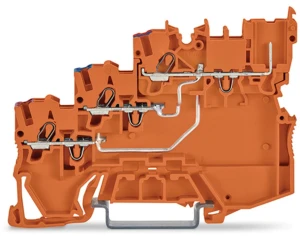

2020-5372 Wago Sensor/actuator terminal block
Wago Sensor/actuator terminal block 3-draads initiatorvoedingsklem voor PNP (positief) schakelende initiat
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.14 - 1.5
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 0.75
Connectable conductor cross section solid-core
(mm²)
0.5 - 1.5
Connectable conductor cross section multi-wired
(mm²)
0.14 - 1
Rated current In
(A)
13.5
Width
(mm)
7
Rated voltage
(V)
250
Number of levels
3
Number of clamp positions per level
2
Internally connected stages
Yes
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Connection position
Above
Mounting method
DIN rail (top hat rail) 35 mm
Cross connectable
Yes
Material insulation body
Thermoplastic
Operating temperature
(°C)
105 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
7
Height at lowest possible mounting height
(mm)
52.4
Length
(mm)
81.1
Explosion-tested version 'Ex e'
No
Closing plate required
Yes
Colour
Orange
LED switching for
No
With PE connection
No
With shield connection
No
With power supply function
Yes
Disconnect function
No
Height
(mm)
81.1
Depth
(mm)
52.4
Stock and logistics
Height
0.08 m
Width
0.109 m
Depth
0.129 m
Packaging
box
Weight
0.27 kg
HS code
85369010
Country of Origin
DE
