Wago
2202-1812
Fuse terminal block
Manufacturer part number: 2202-1812
Serie: Serie 2202
Type: 2202-1812
EAN-code: 4066966195132
SKU Omnical: 4183232
Stock: 0.
Estimated lead time: 9 days *
PreOrder
XOT
$
743.26
per 100 items
$
589.41
per 100 items
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

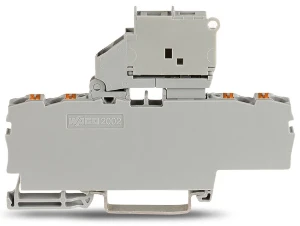

2202-1812 Wago Fuse terminal block
Wago Fuse terminal block 4-draads zekeringsklem met draaibare zekeringhouder en afsluitplaat or
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of fuse insert
G-fuse 5x20 mm
Type of fuse holder
Swivelling
Type of indication element for defect indication
None
Width
(mm)
6.2
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.25 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.75 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.75 - 4
Connectable conductor cross section multi-wired
(mm²)
0.25 - 2.5
Rated current In
(A)
6.3
Rated voltage
(V)
250
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
105 - 105
Inflammability class of insulation material according to with UL94
V0
Closing plate required
No
Colour
Orange
Height
(mm)
87.5
Depth
(mm)
57.6
Stock and logistics
Height
0.072 m
Width
0.103 m
Depth
0.353 m
Packaging
box
Weight
0.897 kg
HS code
85369095
Country of Origin
DE
