Wago
2205-7549
Multi level installation terminal block
Manufacturer part number: 2205-7549
Serie: Serie 2205
Type: 2205-7549
EAN-code: 4066966165296
SKU Omnical: 4118557
Stock: 0.
Estimated lead time: 19 days *
PreOrder
XOT
€
366,00
per 100 items
€
290,24
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

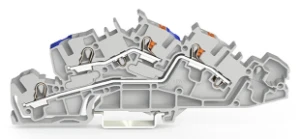

2205-7549 Wago Multi level installation terminal block
Wago Multi level installation terminal block Etage installatieklem met bedieningsopening en drukknop 4 mm² grijs
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 6
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.75 - 4
Connectable conductor cross section solid-core
(mm²)
1 - 6
Connectable conductor cross section multi-wired
(mm²)
0.5 - 4
Rated current In
(A)
40
Width
(mm)
6.2
Rated voltage
(V)
250
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Number of potentials
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
105 - 105
Inflammability class of insulation material according to with UL94
V0
Closing plate required
Yes
Basic colour
Grey
PE-function
No
With N-disconnect slide
No
N function possible
Yes
Height
(mm)
123.5
Depth
(mm)
45.6
Stock and logistics
Height
0.06 m
Width
0.164 m
Depth
0.333 m
Packaging
box
Weight
1.155 kg
HS code
85369010
Country of Origin
DE
