Wago
260-106
Single- and multi-pole terminal strip
Manufacturer part number: 260-106
Serie: Series 260
Type: 260-106
EAN-code: 4044918598811
SKU Omnical: 3016995
Stock: 0.
Estimated lead time: 9 days *
PreOrder
XNQ
€
249,00
per 100 items
€
202,69
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
260-106 Wago Single- and multi-pole terminal strip
Wago Single- and multi-pole terminal strip 2-draads klemmenstrook zonder drukknop met bevestigingsflenzen grijs
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.

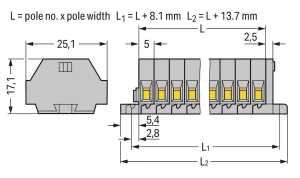

Datasheet
Drill hole distance centrically
(mm)
38.1
Explosion-tested version 'Ex e'
No
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.08 - 1.5
Connectable conductor cross section solid-core
(mm²)
0.08 - 1.5
Width
(mm)
43.7
Connectable conductor cross section multi-wired
(mm²)
0.08 - 1.5
Rated current In
(A)
18
Rated voltage
(V)
400
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Connection position
Sideways
Number of poles
6
Number of clamp positions per pole
2
Mounting method
Other
Material insulation body
Thermoplastic
Operating temperature
(°C)
-30 - 85
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
44.5
Height at lowest possible mounting height
(mm)
17
Length
(mm)
25
Closing plate required
No
Colour
Grey
Transparent
No
Height
(mm)
25.1
Halogen free
Yes
Depth
(mm)
17.1
Stock and logistics
Height
0.096 m
Width
0.13 m
Depth
0.191 m
Packaging
box
Weight
0.598 kg
HS code
85369010
Country of Origin
DE
