Wago
280-834
Feed-through terminal block
Manufacturer part number: 280-834
Serie: Series 280
Type: 280-834
EAN-code: 4044918311427
SKU Omnical: 2998216
Stock:
96 items.
Delivery time: 1-2 business days.
InStock
XNH
€
1,95
per item
€
1,59
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

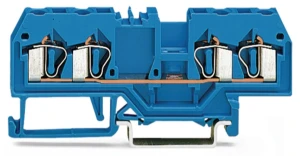

280-834 Wago Feed-through terminal block
Wago Feed-through terminal block 4-draads rijgklem 2,5 mm² geschikt voor Ex i-toepassingen blauw
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.08 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.08 - 2.5
Connectable conductor cross section multi-wired
(mm²)
0.08 - 2.5
Rated current In
(A)
20
Width
(mm)
5
Rated voltage
(V)
800
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Connection position
Above
Number of levels
1
Number of clamp positions per level
4
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
105 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
5
Height at lowest possible mounting height
(mm)
28
Length
(mm)
75
Explosion-tested version 'Ex e'
Yes
Closing plate required
Yes
Colour
Blue
Internally connected stages
No
Height
(mm)
75
Depth
(mm)
28
Stock and logistics
Height
0.04 m
Width
0.16 m
Depth
0.285 m
Packaging
box
Weight
0.998 kg
HS code
85369010
Country of Origin
DE
