Wago 281-611/281-541
Wago

281-611/281-541

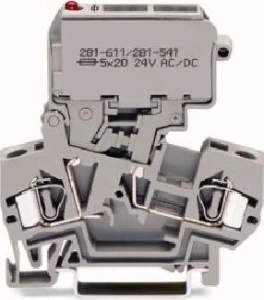

Fuse terminal block
Manufacturer part number: 281-611/281-541
Serie: Series 281
Type: 281-611/281-541

EAN-code: 4045454871451
SKU Omnical: 1134592

Stock: 583 items.

Delivery time: 1-2 business days.
InStock

XNH
1.395,00 per 100 items
1.135,53 per 100 items
EUR | Excluding VAT

Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer
281-611/281-541 Wago Fuse terminal block
Wago Fuse terminal block 2-draads zekeringsklem met draaibare zekeringhouder voor G-smeltpatroo

Datasheet

Type of fuse insert
G-fuse 5x20 mm
Type of fuse holder
Swivelling
Type of indication element for defect indication
LED
Supply voltage for defect-indication (V)
15 - 30
Voltage type for defect indication
AC/DC
Width (mm)
8
Connectable conductor cross section fine-strand without cable end sleeve (mm²)
0.08 - 4
Connectable conductor cross section fine-strand with cable end sleeve (mm²)
0.25 - 2.5
Connectable conductor cross section solid-core (mm²)
0.08 - 4
Connectable conductor cross section multi-wired (mm²)
0.08 - 4
Rated current In (A)
10
Rated voltage (V)
800
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Connection position
Above
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature (°C)
105 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension (mm)
8
Height at lowest possible mounting height (mm)
60
Length (mm)
60
Closing plate required
Yes
Colour
Grey
Height (mm)
60
Depth (mm)
60

Stock and logistics

Height
0.065 m
Width
0.13 m
Depth
0.285 m

Packaging
box
Weight
0.97 kg
HS code
85369095
Country of Origin
CN
