Wago
286-640
Timer relay
Manufacturer part number: 286-640
Serie: Series 286
Type: 286-640
EAN-code: 4050821806349
SKU Omnical: 1126068
Stock: 0.
Estimated lead time: 9 days *
PreOrder
XNM
$
158.97
per item
$
129.40
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

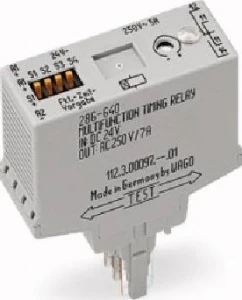

286-640 Wago Timer relay
Wago Timer relay Tijdrelaismodule Nominale ingangsspanning DC 24 V Continue grensstroom
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of electric connection
Spring clamp connection
Function delay-on energization
Yes
Function delay on de-energization
Yes
Function floating contact on energization
Yes
Function floating contact on de-energization
No
Width
(mm)
20
Function star-delta
No
Function pulse shaping
No
Function flashing, starting with pause, fixed time
Yes
Function flashing, starting with pulse, fixed time
No
Clock function, starting with pause, variable
Yes
Clock function, starting with pulse, variable
No
With plug-in socket
Yes
Remote operation possible
No
Suitable as remote control
No
Pluggable on auxiliary contact block
No
Rated control supply voltage at DC
(V)
24 - 24
Voltage type for actuating
DC
Time range
(s)
0.3 - 3
Number of outputs, undelayed, normally closed contact
0
Number of outputs, undelayed, normally open contact
0
Number of outputs, undelayed, change-over contact
0
Number of outputs, delayed, normally closed contact
0
Number of outputs, delayed, normally open contact
0
Number of outputs, delayed, change-over contact
1
Outputs, reversible delayed/undelayed
No
With semiconductor output
No
Height
(mm)
70.2
Depth
(mm)
52
Nominal current
(A)
6
Suitable for DIN rail (top hat rail) mounting
No
Suitable for front mounting
No
Stock and logistics
Height
0.06 m
Width
0.085 m
Depth
0.276 m
Packaging
box
Weight
0.396 kg
HS code
85364900
Country of Origin
DE
