Wago 770-135
Wago

770-135

Plug-in connector for plug-in building installation
Manufacturer part number: 770-135
Serie: Series 770
Type: 770-135

EAN-code: 4044918254502
SKU Omnical: 3024790

Stock: 0.

Estimated lead time: 9 days *
PreOrder

XOB
$ 1,429.33 per 100 items
$ 1,092.01 per 100 items
CAD | Excluding VAT

Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer
770-135 Wago Plug-in connector for plug-in building installation
Wago Plug-in connector for plug-in building installation Male met trekontlastingsbehuizing 5-polig wit
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.

Datasheet

Rated voltage (V)
400
Rated current (A)
25
Number of poles
5
Degree of protection (IP)
IP20
Connection type
Spring clamp connection

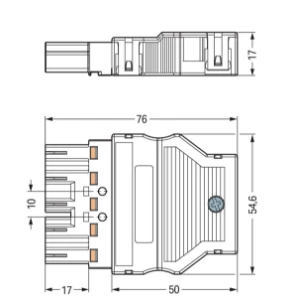

Width (mm)
54.6
Model
Plug
Number of connections per pole
2
Mechanical coding
Yes
Colour coding/contact insert
White
With strain relief
Yes
Material housing
Polyamide (PA)
Halogen free
No
Fire load (kWh)
0.117
Contact material
CuSn
Surface treatment contacts
Tinned
Pollution degree
3
Continuity resistor (mOhm)
1
Rated surge voltage (kV)
6
Length (mm)
76
Height (mm)
17
Cable diameter (mm)
9 - 13
Connection cross section (fine-strand) (mm²)
0.5 - 4
Connection cross section (solid-core) (mm²)
0.5 - 4
Locking mechanism
Separate
Max. continuous temperature resistance contact part (°C)
85
Max. continuous temperature resistance strain relief (°C)
105

Stock and logistics

Height
0.06 m
Width
0.208 m
Depth
0.292 m

Packaging
box
Weight
0.829 kg
HS code
85366990
Country of Origin
DE
