Wago
770-1681
Compact distributor for plug-in building installation
Manufacturer part number: 770-1681
Serie: Series 770
Type: 770-1681
EAN-code: 4050821687740
SKU Omnical: 3024830
Stock: 0.
Estimated lead time: 9 days *
PreOrder
XOB
€
1.696,00
per 100 items
€
1.295,74
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
770-1681 Wago Compact distributor for plug-in building installation
Wago Compact distributor for plug-in building installation h-verdeler 4-polig Cod. B grijs
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated voltage
(V)
400
Rated current
(A)
25
Number of poles
4
Degree of protection (IP)
IP20
Number of inputs
4
Width
(mm)
40
Number of outputs
8
Mechanical coding
Yes
Colour coding/contact insert
Grey
Colour of the separate adapter piece
Without adapter piece
Halogen free
Yes
Material housing
Polyamide (PA)
Fire load
(kWh)
0.151
Contact material
CuSn
Surface treatment contacts
Tinned
Pollution degree
3
Continuity resistor
(mOhm)
1
Rated surge voltage
(kV)
6

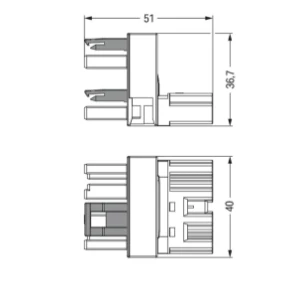

Length
(mm)
51
Height
(mm)
36.7
Type of distributor
Distribution terminal block
Rated current to luminaire
(A)
25
Locking mechanism
Integrated in plug-in connector
Max. continuous temperature resistance contact part
(°C)
85
Max. continuous temperature resistance strain relief
(°C)
105
Type of integrated switching
None
Mounting possibility
With separate adapter
Stock and logistics
Height
0.18 m
Width
0.14 m
Depth
0.228 m
Packaging
box
Weight
1.753 kg
HS code
85366990
Country of Origin
DE
