Wago
890-123
Plug-in connector for plug-in building installation
Manufacturer part number: 890-123
Serie: Series 890
Type: 890-123
EAN-code: 4045454232962
SKU Omnical: 3030952
Stock: 0.
Estimated lead time: 9 days *
PreOrder
XOB
€
642,00
per 100 items
€
490,49
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
890-123 Wago Plug-in connector for plug-in building installation
Wago Plug-in connector for plug-in building installation Female met trekontlastingsbehuizing 3-polig wit
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.

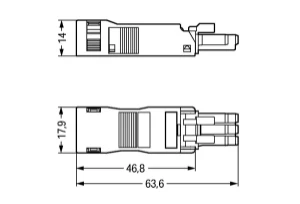

Datasheet
Rated voltage
(V)
250
Rated current
(A)
16
Number of poles
3
Degree of protection (IP)
IP40
Connection type
Spring clamp connection
Width
(mm)
17.9
Model
Bus
Number of connections per pole
1
Pole codification
L, N, PE
Mechanical coding
Yes
Colour coding/contact insert
White
With strain relief
Yes
Material housing
Polyamide (PA)
Halogen free
Yes
Fire load
(kWh)
0.007
Contact material
CuSn
Surface treatment contacts
Tinned
Pollution degree
3
Continuity resistor
(mOhm)
1
Rated surge voltage
(kV)
4
Length
(mm)
63.6
Height
(mm)
14
Cable diameter
(mm)
4.5 - 10
Connection cross section (fine-strand)
(mm²)
0.25 - 1.5
Connection cross section (solid-core)
(mm²)
0.25 - 1.5
Locking mechanism
Separate
Max. continuous temperature resistance contact part
(°C)
85
Max. continuous temperature resistance strain relief
(°C)
105
Stock and logistics
Height
0.124 m
Width
0.128 m
Depth
0.192 m
Packaging
box
Weight
0.455 kg
HS code
85366990
Country of Origin
DE
