Wago
890-272
Plug-in connector for plug-in building installation
Manufacturer part number: 890-272
Serie: Series 890
Type: 890-272
EAN-code: 4055143499637
SKU Omnical: 1801884
Stock: 0.
Estimated lead time: 9 days *
PreOrder
XOB
€
3,14
per item
€
2,40
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
890-272 Wago Plug-in connector for plug-in building installation
Wago Plug-in connector for plug-in building installation Male 2-polig lichtgroen
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated voltage
(V)
250
Rated current
(A)
16
Number of poles
2
Degree of protection (IP)
IP20
Connection type
Spring clamp connection
Width
(mm)
10.4
Model
Plug
Number of connections per pole
1
Pole codification
1, 2
Mechanical coding
Yes
Colour coding/contact insert
Green
With strain relief
No
Material housing
Polyamide (PA)
Halogen free
Yes
Fire load
(kWh)
0.016
Contact material
CuSn
Surface treatment contacts
Tinned
Pollution degree
3
Continuity resistor
(mOhm)
1
Rated surge voltage
(kV)
4

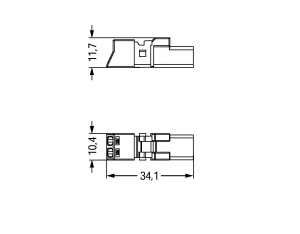

Length
(mm)
34.1
Height
(mm)
11.7
Connection cross section (fine-strand)
(mm²)
0.25 - 1.5
Connection cross section (solid-core)
(mm²)
0.25 - 1.5
Locking mechanism
Separate
Max. continuous temperature resistance contact part
(°C)
85
Max. continuous temperature resistance strain relief
(°C)
105
Stock and logistics
Height
0.052 m
Width
0.109 m
Depth
0.109 m
Packaging
box
Weight
0.155 kg
HS code
85366990
Country of Origin
PL
