Weidmüller
1010000000
Ground terminal block
Manufacturer part number: 1010000000
Serie: W-Series
Type: WPE 2.5
EAN-code: 4008190143640
SKU Omnical: 1005241
Stock:
892 items.
Delivery time: 1-2 business days.
InStock
XBU
€
385,74
per 100 items
€
330,58
per 100 items
EUR | Excluding VAT
Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

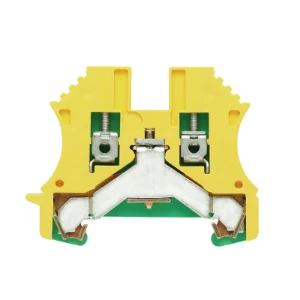

1010000000 Weidmüller Ground terminal block
PE terminal, Screw connection, 2.5 mm¦, 300 A (2.5 mm¦), green / yellow
Datasheet
PEN function possible
No
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.5 - 4
Connectable conductor cross section multi-wired
(mm²)
0.5 - 4
Width
(mm)
5.1
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Other
Connection position
Above
Number of levels
1
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-60 - 130
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
5.1
Height at lowest possible mounting height
(mm)
60
Length
(mm)
46.5
Closing plate required
Yes
Colour
Green/yellow
Height
(mm)
60
Depth
(mm)
46.5
Stock and logistics
Height
0.052 m
Width
0.11 m
Depth
0.317 m
Packaging
Package
Weight
1.672 kg
HS code
85369010
Country of Origin
RO
