Weidmüller
1010100000
Ground terminal block
Manufacturer part number: 1010100000
Serie: W-Series
Type: WPE 4
EAN-code: 4008190039820
SKU Omnical: 1005242
Stock:
901 items.
Delivery time: 1-2 business days.
InStock
XBU
€
392,81
per 100 items
€
336,64
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

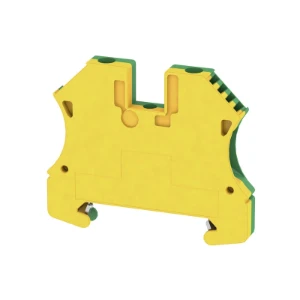

1010100000 Weidmüller Ground terminal block
PE terminal, Screw connection, 4 mm¦, 480 A (4 mm¦), green / yellow
Datasheet
PEN function possible
No
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 6
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 4
Connectable conductor cross section solid-core
(mm²)
0.5 - 6
Connectable conductor cross section multi-wired
(mm²)
0.5 - 6
Width
(mm)
6.1
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Connection position
Sideways
Number of levels
1
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-60 - 130
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
6.1
Height at lowest possible mounting height
(mm)
56
Length
(mm)
46.5
Closing plate required
No
Colour
Green/yellow
Height
(mm)
56
Depth
(mm)
46.5
Stock and logistics
Height
0.054 m
Width
0.131 m
Depth
0.317 m
Packaging
Package
Weight
1.931 kg
HS code
85369010
Country of Origin
RO
