Weidmüller
1011000000
Fuse terminal block
Manufacturer part number: 1011000000
Serie: W-Series
Type: WSI 6
EAN-code: 4008190105624
SKU Omnical: 1005275
Stock: 0.
Estimated lead time: 26 days *
PreOrder
XBU
€
530,40
per 100 items
€
454,55
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

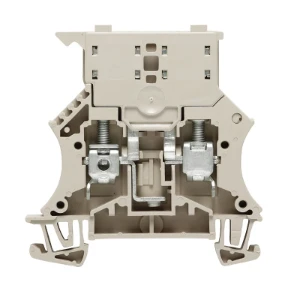

1011000000 Weidmüller Fuse terminal block
W-Series, Fuse terminal, Rated cross-section: 6 mm¦, Screw connection
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of fuse insert
G-fuse 5x20 mm
Type of fuse holder
Swivelling
Type of indication element for defect indication
None
Supply voltage for defect-indication
(V)
250 - 250
Voltage type for defect indication
AC/DC
Width
(mm)
7.9
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 10
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 6
Connectable conductor cross section solid-core
(mm²)
0.5 - 10
Connectable conductor cross section multi-wired
(mm²)
1.5 - 10
Rated current In
(A)
6.3
Rated voltage
(V)
500
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Other
Number of levels
1
Connection position
Sideways
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-50 - 120
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
7.9
Height at lowest possible mounting height
(mm)
61
Length
(mm)
60
Closing plate required
Yes
Colour
Beige
Height
(mm)
60
Depth
(mm)
61
Stock and logistics
Height
0.069 m
Width
0.088 m
Depth
0.315 m
Packaging
Package
Weight
0.972 kg
HS code
85369095
Country of Origin
CZ
