Weidmüller
1013820000
Cable connector
Manufacturer part number: 1013820000
Serie: OMNIMATE Signal - series BL/SL 5.08
Type: BLF 5.08HC/14/180 SN OR BX
EAN-code: 4032248721924
SKU Omnical: 2203551
Stock:
10 items.
Delivery time: 1-2 business days.
InStock
R52
€
9,13
per item
€
8,28
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

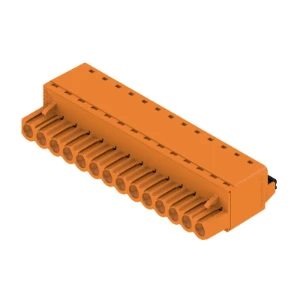

1013820000 Weidmüller Cable connector
PCB plug-in connector, female plug, 5.08 mm, No. of poles: 14, 180¦, PUSH IN, Spring connection, Clamping range, max. : 3.31 mm¦, Box
Datasheet
Contact type
Bus
Number of plug-in contacts
14
Number of plug-in contact rows
1
Modular spacing contacts
(mm)
5.08
Modular spacing connections
(mm)
5.08
Angle contact/conductor connection
90° (upwards vertical)
Rated current In
(A)
21
Rated voltage
(V)
320
Rated surge voltage
(kV)
4
Over voltage category
III
Pollution degree
2
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.2 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.2 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.2 - 2.5
Type of electric connection
Push-in clamp connection
Connectable cable type
Tubular cable
Material of contact surface
Tin
Material contact
Copper
Material insulation body
Polybutylene terephthalate (PBT)
Material housing
Plastic
Housing coating
Uncoated
Colour housing
Orange
Inflammability class of insulation material according to with UL94
V0
With protective conductor
No
Operating temperature
(°C)
-50 - 100
Degree of protection (IP), mounted
Other
Type of connection
Flexible PCB-connector
Number of poles
14
Coating housing
Uncoated
Stock and logistics
Height
0.036 m
Width
0.136 m
Depth
0.351 m
Packaging
Package
Weight
0.671 kg
HS code
85366990
Country of Origin
SK
