Weidmüller
1014300000
Fuse terminal block
Manufacturer part number: 1014300000
Serie: W-Series
Type: WSI 6/2/LD 60-150VDC/AC
EAN-code: 4008190084424
SKU Omnical: 2203592
Stock: 0.
Estimated lead time: 25 days *
PreOrder
XBU
€
14,52
per item
€
12,44
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

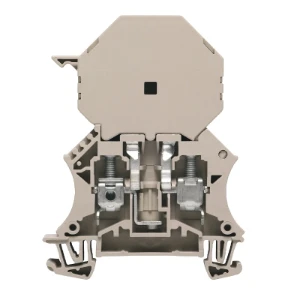

1014300000 Weidmüller Fuse terminal block
W-Series, Fuse terminal, Rated cross-section: 6 mm¦, Screw connection
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of fuse insert
G-fuse 6.3x32 mm
Type of fuse holder
Swivelling
Type of indication element for defect indication
LED
Supply voltage for defect-indication
(V)
150 - 150
Voltage type for defect indication
AC/DC
Width
(mm)
11.9
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 10
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 6
Connectable conductor cross section solid-core
(mm²)
0.5 - 10
Connectable conductor cross section multi-wired
(mm²)
1.5 - 10
Rated current In
(A)
10
Rated voltage
(V)
150
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
1
Connection position
Sideways
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-50 - 120
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
11.9
Height at lowest possible mounting height
(mm)
78.5
Length
(mm)
60
Closing plate required
Yes
Colour
Beige
Height
(mm)
60
Depth
(mm)
78.5
Stock and logistics
Height
0.068 m
Width
0.087 m
Depth
0.314 m
Packaging
Package
Weight
0.688 kg
HS code
85369095
Country of Origin
CZ
