Weidmüller
1021500000
Feed-through terminal block
Manufacturer part number: 1021500000
Serie: W-Series
Type: WDK 2.5
EAN-code: 4008190169527
SKU Omnical: 1005587
Stock:
548 items.
Delivery time: 1-2 business days.
InStock
XBU
€
304,20
per 100 items
€
260,70
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

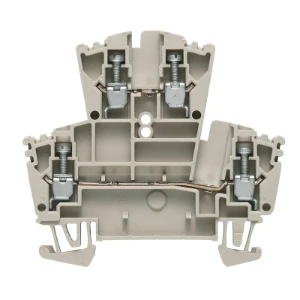

1021500000 Weidmüller Feed-through terminal block
Feed-through terminal, Double-tier terminal, Screw connection, 2.5 mm¦, 400 V, 24 A, Dark Beige
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.5 - 4
Connectable conductor cross section multi-wired
(mm²)
0.5 - 4
Rated current In
(A)
24
Width
(mm)
5.1
Rated voltage
(V)
400
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Connection position
Sideways
Number of levels
2
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-60 - 130
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
5.1
Height at lowest possible mounting height
(mm)
62.5
Length
(mm)
69.5
Explosion-tested version 'Ex e'
Yes
Closing plate required
Yes
Colour
Beige
Internally connected stages
No
Height
(mm)
69.5
Depth
(mm)
63
Suitable for conductor material
Copper
Stock and logistics
Height
0.069 m
Width
0.138 m
Depth
0.297 m
Packaging
Package
Weight
1.307 kg
HS code
85369010
Country of Origin
DE
