Weidmüller
1030200000
Multi level installation terminal block
Manufacturer part number: 1030200000
Serie: W-Series
Type: WDL 2.5/L/L/PE
EAN-code: 4008190164508
SKU Omnical: 1166340
Stock: 0.
Estimated lead time: 7 days *
PreOrder
R51
€
579,81
per 100 items
€
517,77
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

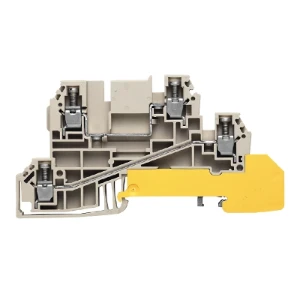

1030200000 Weidmüller Multi level installation terminal block
W-Series, Distributor terminal block with WQV, Rated cross-section: 2.5 mm¦, Screw connection
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.5 - 4
Connectable conductor cross section multi-wired
(mm²)
1.5 - 4
Rated current In
(A)
24
Width
(mm)
6.1
Rated voltage
(V)
400
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Other
Connection position
Sideways
Number of potentials
3
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-50 - 120
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
6.1
Height at lowest possible mounting height
(mm)
48
Length
(mm)
90
Closing plate required
Yes
Basic colour
Beige
PE-function
Yes
N function possible
No
Height
(mm)
90
Depth
(mm)
48
Stock and logistics
Height
0.07 m
Width
0.104 m
Depth
0.329 m
Packaging
Package
Weight
0.949 kg
HS code
85369010
Country of Origin
CZ
