Weidmüller
1070650000
Passive sensor-actuator interface (with cable)
Manufacturer part number: 1070650000
Serie:
Type: SAI-4-F 4P M12 L 5M
EAN-code: 4032248826841
SKU Omnical: 2206239
Stock: 0.
Estimated lead time: 47 days *
PreOrder
SSL Connection
WorldWide Shipping

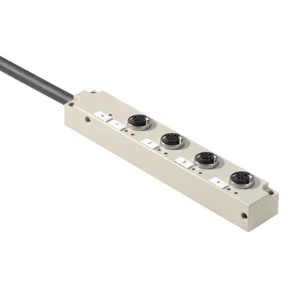

1070650000 Weidmüller Passive sensor-actuator interface (with cable)
Sensor-actuator passive distributor, M12, Fixed cable version, 5 m, Yes
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of branch for trunk line
Fixed-cable distributor / connected trunk line
Type of connector for trunk line
M12
Connection type hood version
Other
Length of the preassembled cable
(m)
5
Cable length configurable
No
Number of sensor-/actuator-slots
4
Number of channels per connector slot
4
Type of branches for sensor-/actuator cables
Other
Number of poles sensor/actuator slots
4
Pollution degree
3
Operating voltage
(V)
10 - 30
Max. current carrying capacity per I/O signal
(A)
3
Max. current carrying capacity per socket
(A)
3
Material contact body
Brass
Material of contact surface
Gold
Material insulation body
PBT
Thread sleeves sensor/actuator slots
M12
With LED indication
Yes
With potential separation
No
Connection for NPN-sensors
No
Fix cable version suitable for cable guide chain
Yes
Material housing
Plastic, metallized
Colour housing
Grey
Operating temperature
(°C)
-20 - 80
Degree of protection (IP)
IP68
Explosion safety category for gas
None
Explosion safety category for dust
None
Height
(mm)
18.2
Depth
(mm)
144
Stock and logistics
Height
0.032 m
Width
0.271 m
Depth
0.28 m
Packaging
Package
Weight
0.516 kg
HS code
85369010
Country of Origin
DE
