Weidmüller
1171090000
Electronic enclosure
Manufacturer part number: 1171090000
Serie: OMNIMATE Housing - series CH20M
Type: SAMPLE LP CH20M6
EAN-code: 4032248962778
SKU Omnical: 2209345
Stock: 0.
Estimated lead time: 16 days *
PreOrder
XER
$
48.64
per item
$
44.12
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1171090000 Weidmüller Electronic enclosure

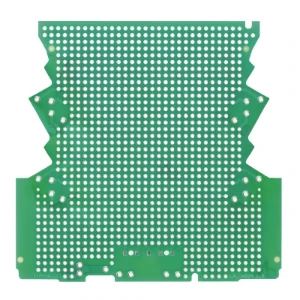

Electronics housing sample, OMNIMATE Housing - series CH20M , PCB for self-assembly, CH20M22, Width: 6.1 mm
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Height
(mm)
142
Depth
(mm)
116
Material
Other
Width
(mm)
0.8
Surface finishing
Untreated
Colour
Green
RAL-number
6032
Operating temperature
(°C)
-40 - 120
Type of enclosure
Closed
With integrated PCB-mounting connection system
No
Rail mounting possible
Yes
Wall mounting possible
No
Side-by-side housing
Yes
With ventilation slots
No
Degree of protection (IP)
IP20
With screening
No
Stock and logistics
Height
0.047 m
Width
0.119 m
Depth
0.152 m
Packaging
Package
Weight
1.071 kg
HS code
85340019
Country of Origin
DE
