Weidmüller
1250690000
Panel feed-through terminal block
Manufacturer part number: 1250690000
Serie: OMNIMATE Power - series WGK
Type: WGK 95/Z BK BX
EAN-code: 4050118041873
SKU Omnical: 2477494
Stock: 0.
Estimated lead time: 64 days *
PreOrder
XUH
€
30,92
per item
€
26,50
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

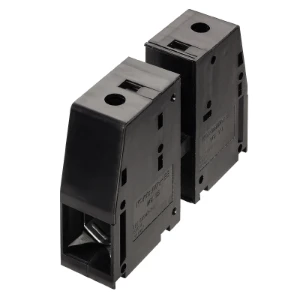

1250690000 Weidmüller Panel feed-through terminal block
OMNIMATE Power - series WGK, Feedthrough terminal, Rated cross-section: 95 mm¦, Screw connection, Wemid (PA), Black, Direct mounting, Feed-through (bushing)
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
35 - 95
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
35 - 95
Connectable conductor cross section solid-core
(mm²)
35 - 35
Connectable conductor cross section multi-wired
(mm²)
35 - 95
Rated current In
(A)
232
Rated voltage
(V)
690
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Connection position
Sideways
Number of poles
1
Mounting method
DIN rail (top hat rail)/G-rail TH35/G32
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
25
Explosion-tested version 'Ex e'
No
Closing plate required
No
Colour
Black
Stock and logistics
Height
0.097 m
Width
0.116 m
Depth
0.271 m
Packaging
Package
Weight
2.498 kg
HS code
85369010
Country of Origin
CN
