Weidmüller
1303670000
Component terminal block
Manufacturer part number: 1303670000
Serie: W-Series
Type: WDK 2.5 LD/GN 1D 2R 230
EAN-code: 4050118102628
SKU Omnical: 2212728
Stock: 0.
Estimated lead time: 18 days *
PreOrder
XBU
€
14,24
per item
€
12,20
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

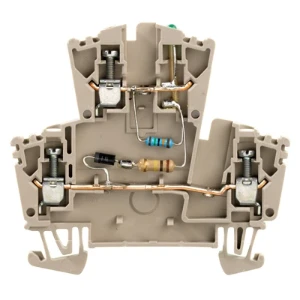

1303670000 Weidmüller Component terminal block
W-Series, Feed-through terminal, Double-tier terminal, Rated cross-section: 2.5 mm¦, Screw connection
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Explosion-tested version 'Ex e'
No
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.5 - 4
Connectable conductor cross section multi-wired
(mm²)
0.5 - 4
Width
(mm)
5.1
Rated current In
(A)
5
Rated voltage
(V)
230
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Other
Connection position
Sideways
Number of levels
2
Number of clamp positions per level
2
Internally connected stages
Yes
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-50 - 120
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
5.1
Height at lowest possible mounting height
(mm)
62.5
Length
(mm)
69
Closing plate required
Yes
Colour
Beige
Height
(mm)
69
Depth
(mm)
62.5
Stock and logistics
Height
0.069 m
Width
0.075 m
Depth
0.146 m
Packaging
Package
Weight
0.323 kg
HS code
85369010
Country of Origin
DE
