Weidmüller
1344670000
Data and communication cable
Manufacturer part number: 1344670000
Serie: Industrial Ethernet
Type: IE-C7FS8LY-305M
EAN-code: 4050118146813
SKU Omnical: 2213913
Stock: 0.
Estimated lead time: 64 days *
PreOrder
XUQ
$
787.36
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1344670000 Weidmüller Data and communication cable

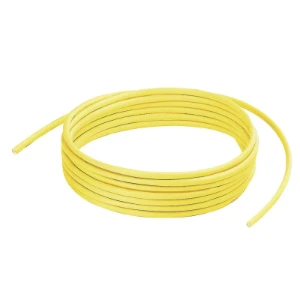

System cable, Cat.7 (ISO/IEC 11801), LSZH, 305 m
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Conductor material
Copper
Conductor surface
Bare
Diameter conductor
(mm)
5.9
AWG size
27
Conductor category
Class 1 = solid
Number of cores
8
Stranding element
Pairs
Material core insulation
Other
Specification core insulation
Polyethylene (PE)
Core identification
Colour
Screen over stranding element
Braiding
Screen over stranding
Other
Suitable for underground installation
No
Protective sheath
Other
Material outer sheath
Other
Specification material outer sheath
Other
Colour outer sheath
Yellow
Material reinforcement
Copper
Cable geometry
Round
None
Halogen free according to EN 60754-1/2
No
Halogen free according to IEC 60754-2
Yes
Flame retardant
According to IEC/EN 60332-1-2
Low smoke (according to EN 61034-2)
Yes
Low smoke according to IEC 61034-2
Yes
Outer diameter approx.
(mm)
5.9
Permitted cable outer temperature after assembling without vibration
(°C)
-20 - 60
Category
7
NVP value
(%)
78
Weight
(kg/km)
12360
Stock and logistics
Height
0.258 m
Width
0.382 m
Depth
0.386 m
Packaging
Package
Weight
15.573 kg
HS code
85444920
Country of Origin
DE
