Weidmüller
1421440000

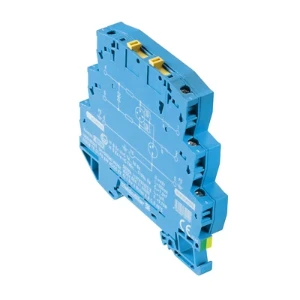

Surge protection device for data networks/MCR-technology
Manufacturer part number: 1421440000
Serie: VSSC
Type: VSSC6 TR SL FG 24VAC/DC EX
EAN-code: 4050118225228
SKU Omnical: 2215755
Stock: 0.
Estimated lead time: 64 days *
PreOrder
XER
€
105,45
per item
€
95,64
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1421440000 Weidmüller Surge protection device for data networks/MCR-technology
Surge protection for instrumentation and control, 24 V, 34 V, 300 mA, IEC61643-21:2009, DIN EN 60079-0.2009, DIN EN 60079-26:2007, DIN EN 61241-11:2006
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Nominal voltage AC
(V)
24 - 24
Nominal voltage DC
(V)
34 - 34
Max. continuous voltage AC
(V)
30
Max. continuous voltage DC
(V)
42
Nominal discharge surge current (8/20)
(kA)
2.5
Nominal load current
(A)
300
Voltage protection level core/core
(V)
70
Voltage protection level signal ground/protective ground
(V)
2200
Frequency
(MHz)
270 - 270
Mounting method
DIN rail (top hat rail) 35 mm
Connection 1
Clamp
Pro-active thermo-control
No
With remote signalling contact
No
Signalling at the device
None
Explosion-tested version
Yes
Assembly width
(mm)
12.4
Degree of protection (IP)
IP20
Stock and logistics
Height
0.027 m
Width
0.087 m
Depth
0.099 m
Packaging
Package
Weight
0.083 kg
HS code
85363010
Country of Origin
CN
