Weidmüller
1521680000
Ground terminal block
Manufacturer part number: 1521680000
Serie: A-series
Type: A2C 2.5 PE
EAN-code: 4050118328189
SKU Omnical: 2477921
Stock:
853 items.
Delivery time: 1-2 business days.
InStock
XBV
€
2,95
per item
€
2,53
per item
EUR | Excluding VAT
Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

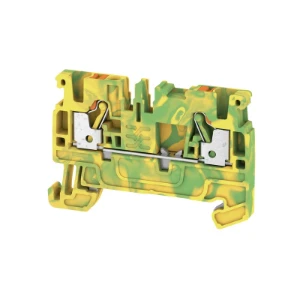

1521680000 Weidmüller Ground terminal block
PE terminal, PUSH IN, 2.5 mm¦, green / yellow
Datasheet
PEN function possible
No
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 4
Connectable conductor cross section solid-core
(mm²)
0.5 - 2.5
Connectable conductor cross section multi-wired
(mm²)
0.5 - 4
Width
(mm)
5.1
Type of electrical connection 1
Plug-in connection
Type of electrical connection 2
Other
Connection position
Above
Number of levels
1
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-60 - 130
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
5.1
Height at lowest possible mounting height
(mm)
55
Length
(mm)
36.5
Closing plate required
Yes
Colour
Green/yellow
Height
(mm)
55
Depth
(mm)
36.5
Stock and logistics
Height
0.04 m
Width
0.116 m
Depth
0.141 m
Packaging
Package
Weight
0.48 kg
HS code
85369010
Country of Origin
DE
