Weidmüller
1562160000

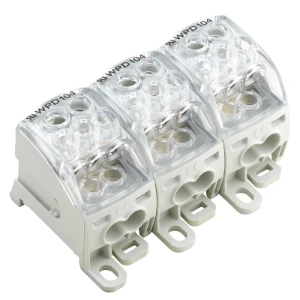

Feed-through terminal block
Manufacturer part number: 1562160000
Serie: W-Series
Type: WPD 304 3X25/6X16+9X10 3XGY
EAN-code: 4050118385243
SKU Omnical: 2220166
Stock: 0.
Estimated lead time: 23 days *
PreOrder
XUI
€
97,63
per item
€
71,17
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1562160000 Weidmüller Feed-through terminal block
W-Series, Distribution block, Rated cross-section: Screw connection, Terminal rail / mounting plate
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
16 - 16
Connectable conductor cross section solid-core
(mm²)
25 - 25
Connectable conductor cross section multi-wired
(mm²)
25 - 25
Rated current In
(A)
164
Width
(mm)
94.5
Rated voltage
(V)
1000
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Connection position
Sideways
Number of levels
1
Number of clamp positions per level
6
Mounting method
Direct mounting
Material insulation body
Thermoplastic
Operating temperature
(°C)
-50 - 130
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
94.5
Height at lowest possible mounting height
(mm)
49
Length
(mm)
68
Explosion-tested version 'Ex e'
Yes
Closing plate required
No
Colour
Grey
Internally connected stages
Yes
Height
(mm)
68
Depth
(mm)
49
Suitable for conductor material
Aluminium/copper
Stock and logistics
Height
0.061 m
Width
0.076 m
Depth
0.114 m
Packaging
Package
Weight
0.327 kg
HS code
85369010
Country of Origin
DE
