Weidmüller
1608650000
Ground terminal block
Manufacturer part number: 1608650000
Serie: Z-series
Type: ZPE 2.5/3AN
EAN-code: 4008190076559
SKU Omnical: 1009371
Stock: 0.
Estimated lead time: 29 days *
PreOrder
YQR
€
456,56
per 100 items
€
407,71
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

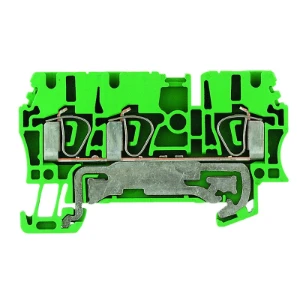

1608650000 Weidmüller Ground terminal block
PE terminal, Tension clamp connection, 2.5 mm¦, 300 A (2.5 mm¦), green / yellow
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
PEN function possible
No
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.5 - 4
Width
(mm)
5.1
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Other
Connection position
Above
Number of levels
1
Number of clamp positions per level
3
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-50 - 120
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
5.1
Height at lowest possible mounting height
(mm)
64.5
Length
(mm)
38.5
Closing plate required
Yes
Colour
Green/yellow
Height
(mm)
64.5
Depth
(mm)
38.5
Stock and logistics
Height
0.043 m
Width
0.135 m
Depth
0.193 m
Packaging
Package
Weight
0.665 kg
HS code
85369010
Country of Origin
CZ
