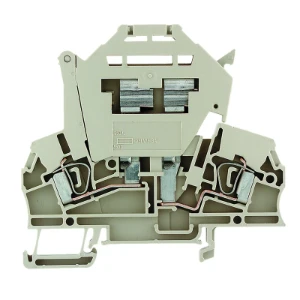

Weidmüller 1616400000
Weidmüller

1616400000

Fuse terminal block
Manufacturer part number: 1616400000
Serie: Z-series
Type: ZSI 2.5

EAN-code: 4008190196592
SKU Omnical: 1009442

Stock: 0.

Estimated lead time: 24 days *
PreOrder

YQR
505,54 per 100 items
451,45 per 100 items
EUR | Excluding VAT

Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer
1616400000 Weidmüller Fuse terminal block
Z-series, Fuse terminal, Rated cross-section: 2.5 mm¦, Tension clamp connection, Dark Beige, Direct mounting
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.

Datasheet

Type of fuse insert
G-fuse 5x20 mm
Type of fuse holder
Swivelling
Type of indication element for defect indication
None
Supply voltage for defect-indication (V)
500 - 500
Voltage type for defect indication
AC/DC
Width (mm)
7.9
Connectable conductor cross section fine-strand without cable end sleeve (mm²)
0.5 - 4
Connectable conductor cross section fine-strand with cable end sleeve (mm²)
0.5 - 2.5
Connectable conductor cross section solid-core (mm²)
0.5 - 4
Rated current In (A)
6.3
Rated voltage (V)
500
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Other
Number of levels
1
Connection position
Inclined
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature (°C)
-50 - 120
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension (mm)
7.9
Height at lowest possible mounting height (mm)
73
Length (mm)
79.5
Closing plate required
Yes
Colour
Beige
Height (mm)
79.5
Depth (mm)
73

Stock and logistics

Height
0.078 m
Width
0.163 m
Depth
0.261 m

Packaging
Package
Weight
1.073 kg
HS code
85369095
Country of Origin
CZ
