Weidmüller
1632080000

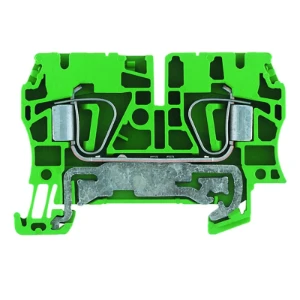

Ground terminal block
Manufacturer part number: 1632080000
Serie: Z-series
Type: ZPE 4
EAN-code: 4008190263218
SKU Omnical: 1009498
Stock:
111 items.
Delivery time: 1-2 business days.
InStock
YQR
$
449.73
per 100 items
$
401.61
per 100 items
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1632080000 Weidmüller Ground terminal block
PE terminal, Tension clamp connection, 4 mm¦, 480 A (4 mm¦), green / yellow
Datasheet
PEN function possible
No
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 6
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 4
Connectable conductor cross section solid-core
(mm²)
0.5 - 6
Connectable conductor cross section multi-wired
(mm²)
1.5 - 6
Width
(mm)
6.1
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Connection position
Above
Number of levels
1
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-50 - 120
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
6.1
Height at lowest possible mounting height
(mm)
64
Length
(mm)
43
Closing plate required
Yes
Colour
Green/yellow
Height
(mm)
62.5
Depth
(mm)
43
Stock and logistics
Height
0.049 m
Width
0.133 m
Depth
0.203 m
Packaging
Package
Weight
0.703 kg
HS code
85369010
Country of Origin
DE
