Weidmüller
1650350000
Component terminal block
Manufacturer part number: 1650350000
Serie: Z-series
Type: ZDU 2.5/2X2AN/D-
EAN-code: 4008190297404
SKU Omnical: 2222601
Stock: 0.
Estimated lead time: 21 days *
PreOrder
YQR
€
4,53
per item
€
4,05
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

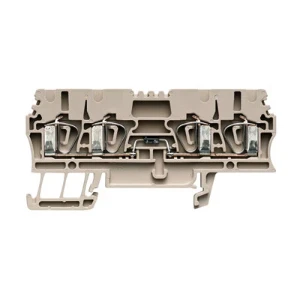

1650350000 Weidmüller Component terminal block
Z-series, Component terminal, Feed-through terminal, Rated cross-section: 2.5 mm¦, Tension clamp connection, Beige
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Explosion-tested version 'Ex e'
Yes
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.5 - 4
Width
(mm)
5.1
Rated current In
(A)
0.5
Rated voltage
(V)
400
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Connection position
Above
Number of levels
1
Number of clamp positions per level
4
Internally connected stages
No
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-50 - 120
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
5.1
Height at lowest possible mounting height
(mm)
38.5
Length
(mm)
79.5
Closing plate required
Yes
Colour
Beige
Type of component
Diode
Height
(mm)
79.5
Depth
(mm)
38.5
Stock and logistics
Height
0.05 m
Width
0.12 m
Depth
0.128 m
Packaging
Package
Weight
0.273 kg
HS code
85369010
Country of Origin
DE
