Weidmüller
1674300000
Feed-through terminal block
Manufacturer part number: 1674300000
Serie: Z-series
Type: ZDK 2.5
EAN-code: 4008190444884
SKU Omnical: 1009685
Stock:
3,805 items.
Delivery time: 1-2 business days.
InStock
YQR
$
328.50
per 100 items
$
293.35
per 100 items
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

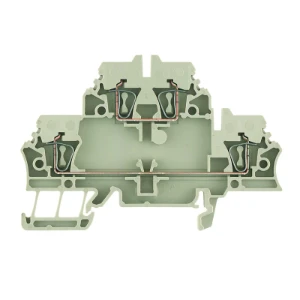

1674300000 Weidmüller Feed-through terminal block
Feed-through terminal, Double-tier terminal, Tension clamp connection, 2.5 mm¦, 500 V, 20 A, Beige
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.5 - 2.5
Connectable conductor cross section multi-wired
(mm²)
0.5 - 2.5
Rated current In
(A)
20
Width
(mm)
5.1
Rated voltage
(V)
500
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Connection position
Above
Number of levels
2
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-50 - 120
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
5.1
Height at lowest possible mounting height
(mm)
53
Length
(mm)
79.5
Explosion-tested version 'Ex e'
Yes
Closing plate required
Yes
Colour
Beige
Internally connected stages
No
Height
(mm)
79.5
Depth
(mm)
53
Suitable for conductor material
Copper
Stock and logistics
Height
0.066 m
Width
0.136 m
Depth
0.182 m
Packaging
Package
Weight
0.516 kg
HS code
85369010
Country of Origin
DE
