Weidmüller
1701242000

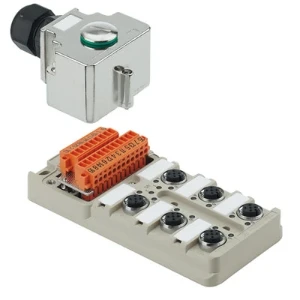

Passive sensor-actuator interface (without cable)
Manufacturer part number: 1701242000
Serie: SAI Passive
Type: SAI-6-MH-5P M12
EAN-code: 4032248184484
SKU Omnical: 2223656
Stock: 0.
Estimated lead time: 45 days *
PreOrder
R64
€
148,09
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1701242000 Weidmüller Passive sensor-actuator interface (without cable)
SAI Passive, Sensor-actuator passive distributor, M12, Hood version with M20 outlet, Yes
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of connector for trunk line
Other
Connectable conductor cross section
(mm²)
0.08 - 1.5
Cable outer diameter for cable gland
(mm)
10 - 14
Number of sensor-/actuator-slots
6
Number of channels per connector slot
5
Width
(mm)
60
Type of branches for sensor-/actuator cables
M12
Number of poles sensor/actuator slots
5
Pollution degree
3
Operating voltage
(V)
10 - 30
Max. current carrying capacity per I/O signal
(A)
4
Max. current carrying capacity per socket
(A)
4
Material contact body
Brass
Material of contact surface
Gold
Material insulation body
PBT
Thread sleeves sensor/actuator slots
M12
With LED indication
Yes
With potential separation
Yes
Connection for NPN-sensors
No
Fix cable version suitable for cable guide chain
No
Material housing
Plastic
Colour housing
Silver
Operating temperature
(°C)
-20 - 90
Degree of protection (IP)
IP68
Explosion safety category for gas
None
Explosion safety category for dust
None
Height
(mm)
55
Length
(mm)
127
Stock and logistics
Height
0.075 m
Width
0.069 m
Depth
0.144 m
Packaging
Package
Weight
0.525 kg
HS code
85369010
Country of Origin
DE
