Weidmüller
1720950000
Ground terminal block
Manufacturer part number: 1720950000
Serie: Z-series
Type: ZPEA 2.5-2
EAN-code: 4008190376819
SKU Omnical: 1010021
Stock:
340 items.
Delivery time: 1-2 business days.
InStock
YQR
€
198,12
per 100 items
€
176,92
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

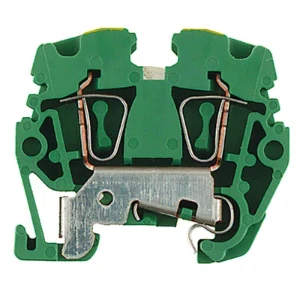

1720950000 Weidmüller Ground terminal block
Z-series, PE terminal, Rated cross-section: 2.5 mm¦, Tension clamp connection, green / yellow
Datasheet
PEN function possible
No
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.5 - 2.5
Connectable conductor cross section multi-wired
(mm²)
0.5 - 2.5
Width
(mm)
5.1
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Connection position
Sideways
Number of levels
1
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 15 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-60 - 130
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
5.1
Height at lowest possible mounting height
(mm)
35
Length
(mm)
30
Closing plate required
Yes
Colour
Green/yellow
Height
(mm)
35
Depth
(mm)
30
Stock and logistics
Height
0.039 m
Width
0.108 m
Depth
0.185 m
Packaging
Package
Weight
0.496 kg
HS code
85369010
Country of Origin
CZ
