Weidmüller
1746770000
Ground terminal block
Manufacturer part number: 1746770000
Serie: Z-series
Type: ZPE 10
EAN-code: 4008190996734
SKU Omnical: 1010146
Stock:
98 items.
Delivery time: 1-2 business days.
InStock
YQR
€
482,46
per 100 items
€
430,84
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

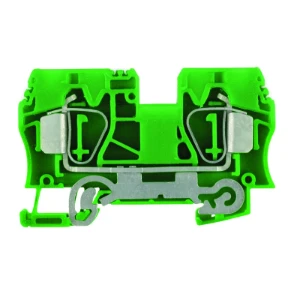

1746770000 Weidmüller Ground terminal block
PE terminal, Tension clamp connection, 10 mm¦, 1200 A (10 mm¦), green / yellow
Datasheet
PEN function possible
Yes
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
1.5 - 10
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
1.5 - 10
Connectable conductor cross section solid-core
(mm²)
1.5 - 16
Connectable conductor cross section multi-wired
(mm²)
1.5 - 16
Width
(mm)
10.1
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Connection position
Above
Number of levels
1
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-50 - 120
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
10.1
Height at lowest possible mounting height
(mm)
73.5
Length
(mm)
49.5
Closing plate required
Yes
Colour
Green/yellow
Height
(mm)
73.5
Depth
(mm)
49.5
Stock and logistics
Height
0.063 m
Width
0.139 m
Depth
0.159 m
Packaging
Package
Weight
0.833 kg
HS code
85369010
Country of Origin
CZ
