Weidmüller
1766710000
Passive sensor-actuator interface (with cable)
Manufacturer part number: 1766710000
Serie: SAI Passive
Type: SAI-8-F 4P IDC PUR 10M
EAN-code: 4032248107490
SKU Omnical: 2225728
Stock: 0.
Estimated lead time: 40 days *
PreOrder
R64
€
160,35
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

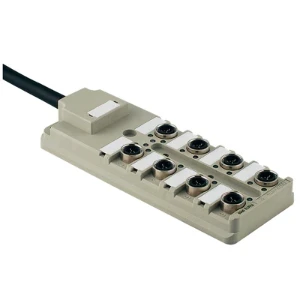

1766710000 Weidmüller Passive sensor-actuator interface (with cable)
SAI Passive, Sensor-actuator passive distributor, IDC, M12, Fixed cable version, 10 m, Yes
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of branch for trunk line
Fixed-cable distributor / connected trunk line
Type of connector for trunk line
M12
Connection type hood version
Other
Width
(mm)
60
Cable outer diameter for cable gland
(mm)
1.2 - 1.2
Length of the preassembled cable
(m)
10
Cable length configurable
No
Number of sensor-/actuator-slots
8
Number of channels per connector slot
4
Type of branches for sensor-/actuator cables
Other
Number of poles sensor/actuator slots
4
Pollution degree
2
Operating voltage
(V)
10 - 30
Max. current carrying capacity per I/O signal
(A)
4
Max. current carrying capacity per socket
(A)
4
Material contact body
Brass
Material of contact surface
Gold
Material insulation body
PBT
Thread sleeves sensor/actuator slots
M12
With LED indication
Yes
With potential separation
No
Connection for NPN-sensors
No
Fix cable version suitable for cable guide chain
Yes
Material housing
Plastic
Colour housing
Grey
Operating temperature
(°C)
-20 - 80
Degree of protection (IP)
IP67
Explosion safety category for gas
None
Explosion safety category for dust
None
Height
(mm)
25
Depth
(mm)
152
Stock and logistics
Height
0.041 m
Width
0.315 m
Depth
0.32 m
Packaging
Package
Weight
1.359 kg
HS code
85369010
Country of Origin
DE
