Weidmüller 1782300000
Weidmüller

1782300000

Feed-through terminal block
Manufacturer part number: 1782300000
Serie: Z-series
Type: ZDLD 2.5-2N

EAN-code: 4032248176526
SKU Omnical: 1010631

Stock: 0.

Estimated lead time: 27 days *
PreOrder

YQR
446,06 per 100 items
398,33 per 100 items
EUR | Excluding VAT

Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer

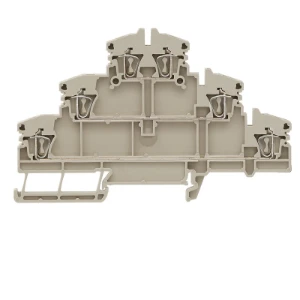

1782300000 Weidmüller Feed-through terminal block
Multi-tier modular terminal, Tension clamp connection, 2.5 mm¦, 500 V, 20 A, Dark Beige
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.

Datasheet

Connectable conductor cross section fine-strand without cable end sleeve (mm²)
0.5 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve (mm²)
0.5 - 1.5
Connectable conductor cross section solid-core (mm²)
0.5 - 2.5
Rated current In (A)
20
Width (mm)
5.1
Rated voltage (V)
500
Type of electrical connection 1
Spring clamp connection
Connection position
Above
Number of levels
3
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature (°C)
-50 - 120
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension (mm)
5.1
Height at lowest possible mounting height (mm)
69
Length (mm)
110.5
Explosion-tested version 'Ex e'
No
Closing plate required
Yes
Colour
Beige
Internally connected stages
No
Height (mm)
110.5
Depth (mm)
69

Stock and logistics

Height
0.078 m
Width
0.158 m
Depth
0.26 m

Packaging
Package
Weight
0.955 kg
HS code
85369010
Country of Origin
CZ
