Weidmüller
1787850000
Housing for rectangular connectors
Manufacturer part number: 1787850000
Serie: HDC enclosures
Type: HDC 24B TOLU 1M32G
EAN-code: 4032248205295
SKU Omnical: 2226639
Stock: 0.
Estimated lead time: 64 days *
PreOrder
R63
$
29.74
per item
$
19.33
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

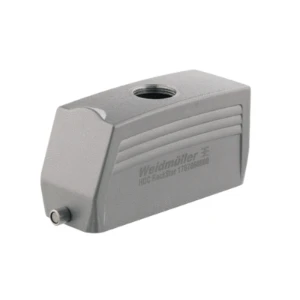

1787850000 Weidmüller Housing for rectangular connectors
HDC enclosures, Size: 8, Protection degree: IP65, Cable entry from top, Plug housing, End-locking clamp, lower side, Standard, Size of cable entries: M 32
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Shape
Rectangular
Height
(mm)
61
Width
(mm)
46
Type of housing
Plug case
Position cable feed
Above
Position of the shackle
Base unit
With cable screw gland
No
Material housing
Aluminium
With interlocking device
Yes
Locking mechanism
Single locking lever
Inflammability class of insulation material according to with UL94
Other
Operating temperature
(°C)
-40 - 125
EMC-version
No
Corrosion resistant
Yes
UV resistant
Yes
Degree of protection (IP), mounted
IP65
Coating housing
Powder coating
Colour housing
Grey
Material adapter plate
Aluminium
Mounting method of the cable gland
Metric
Number of openings
1
Number of conduit inlets
0
Stock and logistics
Height
0.046 m
Width
0.062 m
Depth
0.135 m
Packaging
Package
Weight
0.279 kg
HS code
85389099
Country of Origin
CN
