Weidmüller
1828390000

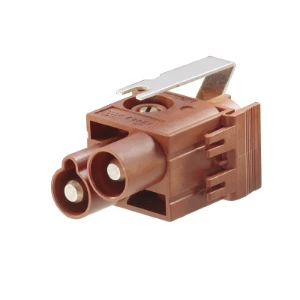

Contact insert for rectangular connectors
Manufacturer part number: 1828390000
Serie: HDC insert
Type: HDC CM 1 MS +PE
EAN-code: 4032248334612
SKU Omnical: 2228266
Stock: 0.
Estimated lead time: 25 days *
PreOrder
R63
€
111,02
per item
€
72,16
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1828390000 Weidmüller Contact insert for rectangular connectors
Weidmüller Contact insert for rectangular connectors Contact insert (industry plug-in connectors), Pin, 1000 V, 82 A, Numbe
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
1
Rated current In
(A)
82
Contact type
Pin
Width
(mm)
22.8
With housing
No
Contact insert without contacts
No
Shape
Rectangular
Diameter plug-in contact
(mm)
6
Modular version
No
Material connector insert
Thermoplastic
Rated voltage
(V)
1000
Rated surge voltage
(kV)
6
Over voltage category
III
Pollution degree
3
Type of electric connection
Screw connection
With wire protection
Yes
Connectable conductor cross section solid-core
(mm²)
10 - 25
Connectable conductor cross section multi-wired
(mm²)
10 - 25
Material of contact insert
Thermoplastic
Material contact
Other
Inflammability class of insulation material according to with UL94
V0
With protective conductor
Yes
Height
(mm)
47.8
Depth
(mm)
34
Stock and logistics
Height
0.058 m
Width
0.084 m
Depth
0.111 m
Packaging
Package
Weight
0.249 kg
HS code
85366990
Country of Origin
DE
