Weidmüller
1841130000
Printed circuit board connector
Manufacturer part number: 1841130000
Serie: OMNIMATE Signal - series BL/SL 5.00
Type: SL-SMT 5.00HC/22/180 3.2SN BK BX
EAN-code: 4032248352012
SKU Omnical: 2228600
Stock: 0.
Estimated lead time: 30 days *
PreOrder
R52
€
5,43
per item
€
4,93
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

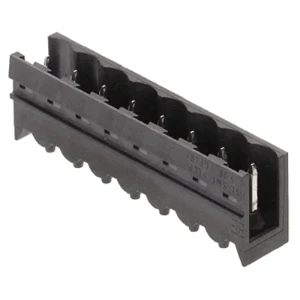

1841130000 Weidmüller Printed circuit board connector
PCB plug-in connector, male header, open side, THT/THR solder connection, 5.00 mm, No. of poles: 22, 180¦, Solder pin length (l): 3.2 mm, tinned, Black, Box
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connector model
Fixed connector
Contact type
Pin
Number of plug-in contacts
22
Number of plug-in contact rows
1
Modular spacing contacts
(mm)
5
Modular spacing connections
(mm)
5
Angle PCB/contact
90° (upwards vertical)
Rated current In
(A)
24
Rated voltage
(V)
320
Rated surge voltage
(kV)
4
Over voltage category
II
Pollution degree
2
Material of contact surface
Tin
Type of electric connection
THR connection
Length pin
(mm)
3.2
Material insulation body
Liquid crystal polymer
Colour housing
Black
Inflammability class of insulation material according to with UL94
V0
Operating temperature
(°C)
-50 - 100
Type of PCB fastening
Other
Type of fastening
Solder
Packaging type
Other
Type of banding
Other
Type of connection
Flexible PCB-connector
Number of poles
22
Stock and logistics
Height
0.07 m
Width
0.042 m
Depth
0.168 m
Packaging
Package
Weight
0.209 kg
HS code
85366990
Country of Origin
DE
