Weidmüller
1861920000

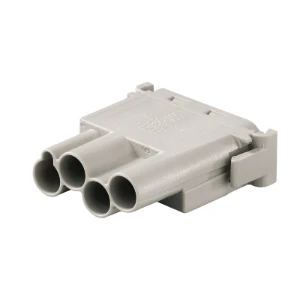

Contact insert for rectangular connectors
Manufacturer part number: 1861920000
Serie: HDC insert
Type: HDC CM HE 4 MC
EAN-code: 4032248425068
SKU Omnical: 2229463
Stock: 0.
Estimated lead time: 31 days *
PreOrder
R63
€
4,75
per item
€
3,09
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1861920000 Weidmüller Contact insert for rectangular connectors
Weidmüller Contact insert for rectangular connectors Contact insert (industry plug-in connectors), Pin, 630 V, 25 A, Number
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
4
Rated current In
(A)
25
Contact type
Pin
Width
(mm)
11.4
With housing
No
Contact insert without contacts
Yes
Shape
Rectangular
Diameter plug-in contact
(mm)
2.5
Modular version
No
Material connector insert
Thermoplastic
Rated voltage
(V)
630
Rated surge voltage
(kV)
8
Over voltage category
III
Pollution degree
3
Type of electric connection
Crimp connection
With wire protection
No
Connectable conductor cross section solid-core
(mm²)
0.5 - 4
Connectable conductor cross section multi-wired
(mm²)
0.5 - 4
Material of contact insert
Thermoplastic
Material contact
Other
Inflammability class of insulation material according to with UL94
V0
With protective conductor
No
Height
(mm)
39.5
Depth
(mm)
34
Stock and logistics
Height
0.04 m
Width
0.089 m
Depth
0.127 m
Packaging
Package
Weight
0.095 kg
HS code
85366990
Country of Origin
DE
