Weidmüller
1901700000

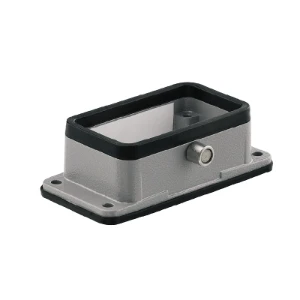

Housing for rectangular connectors
Manufacturer part number: 1901700000
Serie: HDC enclosures
Type: HDC 10B AZO
EAN-code: 4032248592937
SKU Omnical: 2231531
Stock: 0.
Estimated lead time: 64 days *
PreOrder
R63
€
23,65
per item
€
15,37
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1901700000 Weidmüller Housing for rectangular connectors
HDC enclosures, Size: 4, Protection degree: IP65, Bulkhead enclosure, Side-locking clamp on lower side, Standard
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Shape
Rectangular
Height
(mm)
29
Width
(mm)
59
Type of housing
Housing extension
Position cable feed
Other
Position of the shackle
Base unit
With cable screw gland
No
Material housing
Aluminium
With interlocking device
Yes
Locking mechanism
Double locking levers
Inflammability class of insulation material according to with UL94
Other
Operating temperature
(°C)
-40 - 125
EMC-version
No
Corrosion resistant
Yes
UV resistant
Yes
Degree of protection (IP), mounted
IP65
Depth
(mm)
95
Coating housing
Powder coating
Colour housing
Grey
Material adapter plate
Aluminium
With sealing
Yes
Stock and logistics
Height
0.038 m
Width
0.079 m
Depth
0.101 m
Packaging
Package
Weight
0.081 kg
HS code
85389099
Country of Origin
CN
