Weidmüller
1967210000
Contact insert for rectangular connectors
Manufacturer part number: 1967210000
Serie: HDC insert
Type: HDC HVE 10+2 MT CtH
EAN-code: 4032248661213
SKU Omnical: 2234878
Stock: 0.
Estimated lead time: 64 days *
PreOrder
R63
€
30,78
per item
€
20,01
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

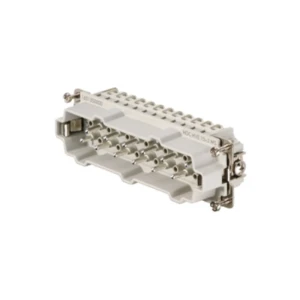

1967210000 Weidmüller Contact insert for rectangular connectors
HDC insert, Male, 830 V, 20 A, No. of poles: 12, Tension clamp connection, Size: 8
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
12
Rated current In
(A)
20
Contact type
Pin
Width
(mm)
34
With housing
No
Contact insert without contacts
No
Shape
Rectangular
Modular version
No
Material connector insert
Thermoplastic
Rated voltage
(V)
830
Rated surge voltage
(kV)
8
Pollution degree
3
Type of electric connection
Spring clamp connection
With wire protection
No
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 4
Connectable conductor cross section solid-core
(mm²)
0.5 - 4
Connectable conductor cross section multi-wired
(mm²)
0.25 - 2.5
Material of contact surface
Silver
Material of contact insert
Thermoplastic
Material contact
Other copper alloys
Inflammability class of insulation material according to with UL94
V0
With protective conductor
Yes
Number of power contacts
10
Number of control contacts
2
Operating temperature
(°C)
-40 - 125
Height
(mm)
33.5
Depth
(mm)
111
Stock and logistics
Height
0.035 m
Width
0.033 m
Depth
0.112 m
Packaging
Package
Weight
0.082 kg
HS code
85366990
Country of Origin
CN
