Weidmüller
1968360000
Housing for rectangular connectors
Manufacturer part number: 1968360000
Serie: HDC enclosures
Type: HDC 24D TSZO 1PG21G
EAN-code: 4032248772858
SKU Omnical: 2234928
Stock: 0.
Estimated lead time: 64 days *
PreOrder
R63
$
97.78
per item
$
63.56
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

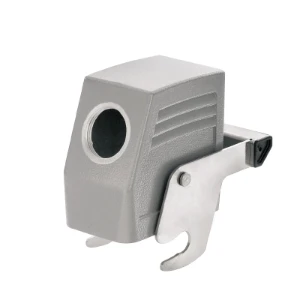

1968360000 Weidmüller Housing for rectangular connectors
HDC enclosures, Size: 4, Protection degree: IP65, Cable entry from side, Plug housing, Central locking at hoods, high, Size of cable entries: PG 21
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Shape
Rectangular
Height
(mm)
72
Width
(mm)
57
Type of housing
Plug case
Position cable feed
Sideways
Position of the shackle
Cover
With cable screw gland
No
Material housing
Aluminium
With interlocking device
Yes
Locking mechanism
Central clamp
Inflammability class of insulation material according to with UL94
Other
Operating temperature
(°C)
-40 - 125
EMC-version
No
Corrosion resistant
Yes
UV resistant
Yes
Degree of protection (IP), mounted
IP65
Depth
(mm)
100.5
Coating housing
Powder coating
Colour housing
Grey
Material adapter plate
Aluminium
Mounting method of the cable gland
PG
Number of openings
0
Number of conduit inlets
1
Stock and logistics
Height
0.058 m
Width
0.081 m
Depth
0.084 m
Packaging
Package
Weight
0.258 kg
HS code
85389099
Country of Origin
CN
