Weidmüller
1969950000
Cable connector
Manufacturer part number: 1969950000
Serie: OMNIMATE Signal - series BC/SC 3.81
Type: BCF 3.81/04/180 SN BK BX
EAN-code: 4032248679546
SKU Omnical: 1400534
Stock:
17 items.
Delivery time: 1-2 business days.
InStock
R52
€
269,33
per 100 items
€
244,28
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

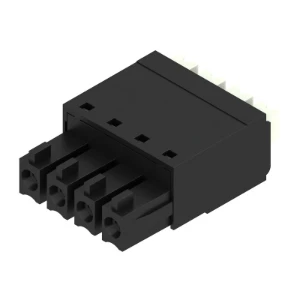

1969950000 Weidmüller Cable connector
PCB plug-in connector, female plug, 3.81 mm, No. of poles: 4, 180¦, PUSH IN, Spring connection, Clamping range, max. : 1.5 mm¦, Box
Datasheet
Contact type
Bus
Number of plug-in contacts
4
Number of plug-in contact rows
1
Modular spacing contacts
(mm)
3.81
Modular spacing connections
(mm)
3.81
Angle contact/conductor connection
90° (upwards vertical)
Rated current In
(A)
17.5
Rated voltage
(V)
160
Rated surge voltage
(kV)
2.5
Over voltage category
III
Pollution degree
2
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.14 - 1.5
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.25 - 1.5
Connectable conductor cross section solid-core
(mm²)
0.14 - 1.5
Type of electric connection
Push-in clamp connection
Connectable cable type
Tubular cable
Material of contact surface
Tin
Material contact
Other copper alloys
Material insulation body
Polyamide (PA)
Material housing
Plastic
Housing coating
Uncoated
Colour housing
Black
Inflammability class of insulation material according to with UL94
V0
With protective conductor
No
Operating temperature
(°C)
-50 - 120
Degree of protection (IP), mounted
Other
Type of connection
Flexible PCB-connector
Number of poles
4
Coating housing
Uncoated
Stock and logistics
Height
0.025 m
Width
0.093 m
Depth
0.123 m
Packaging
Package
Weight
0.148 kg
HS code
85366990
Country of Origin
CN
